PIPE THREADING MACHINES
Macstroc pipe threading machines embody efficiency, versatility, power, and cost-effectiveness, making them an excellent choice.
Pipe threading machines and accessories
Macstroc pipe threading machines are renowned for their exceptional performance in diverse applications. These machines not only exhibit remarkable efficiency, versatility, and power, but they also offer a cost-effective solution for various threading needs. With their cutting-edge technology and robust design, Macstroc pipe threading machines stand out as reliable tools that streamline operations and deliver consistent results.

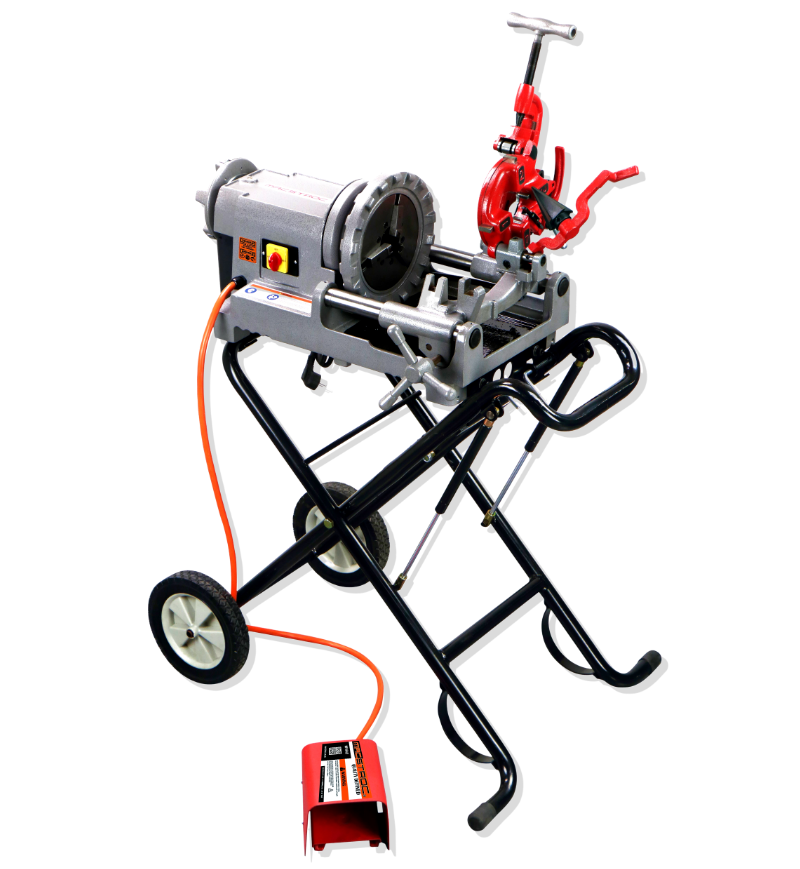

FLARE.2C, COMPACT PIPE THREADER
MODEL: FLARE.2C
CAPACITY
Pipe: 1/8” -2”(3MM-50MM)
Bolt: 12MM-50MM
SPECIFICATIONS:
Motor: 1500W universal, 50/60Hz
Switch: Heavy-duty rotary Forward/off/reverse and integral foot switch.
Spindle Speed: 38 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through the die head, with integral oil reservoir.
Pump: Self-priming constant flow, gerotor pump.
Model FLARE.2C Threading Machine. (110 or 220V )
Self-opening die head-SDH15A (BSPT or NPT )
½”-¾” universal HSS dies set. (BSPT or NPT)
1”-2” universal HSS dies set. (BSPT or NPT)
Cutter-MHC2029 : Capacity: 1/8”-2”(3mm-50mm)
pipe Reamer-MHR1006 : Positive-locking, 5-flute cone,
righthand 1/8”-2”(3mm-50mm).
*1 Gallon ‘Power Fluid PF-9835’ cutting oil.
Supplied with MFS642 foot switch,
MH6511 folding wheel stand (Optional)
*May not be supplied to certain countries

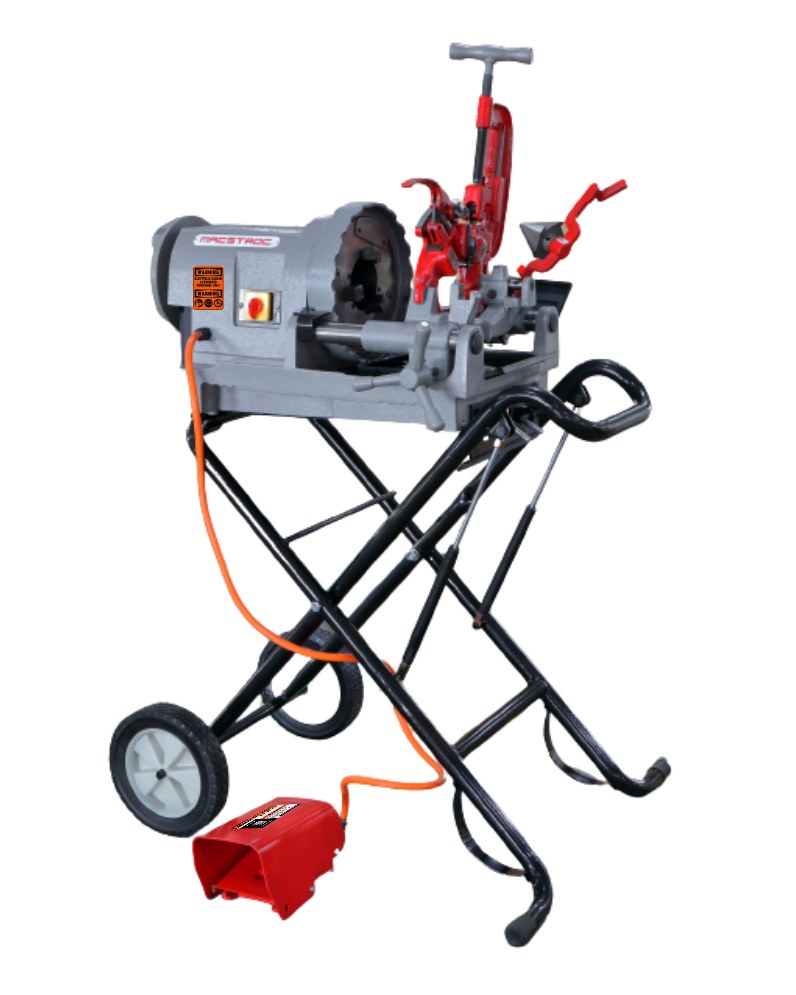

FLARE.3C, COMPACT PIPE THREADER
MODEL: FLARE.3C
CAPACITY
Pipe: 1/8” -3”(3MM-80MM)
Bolt: 12MM-45MM
SPECIFICATIONS:
Motor: 1500W universal, 50/60Hz
Switch: Heavy-duty rotary Forward/off/reverse and integral foot switch.
Spindle Speed: 32 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through the die head, with integral oil reservoir.
Pump: Self-priming constant flow, gerotor pump.
Model FLARE.3C Threading Machine. (110 or 220V )
Self-opening die head-SDH15A 1/2-2”(BSPT or NPT )
Self-opening die head-SDH28 2-1/2-3”(BSPT or NPT ) 1/2”-3/4” universal HSS dies set. (BSPT or NPT)
1”-2” universal HSS dies set. (BSPT or NPT)
2-1/2”-3” universal HSS dies set. (BSPT or NPT)
Cutter-MHC2030 : Capacity: 1/4”-3”(6mm-80mm) pipe
Reamer-MHR1008 : Positive-locking, 5-flute cone, righthand 1/4”-3”(6mm-80mm).
*1 Gallon ‘Power Fluid PF-9835’ cutting oil.
Supplied with MFS642 foot switch, MH6511 folding wheel
*May not be supplied to certain countries

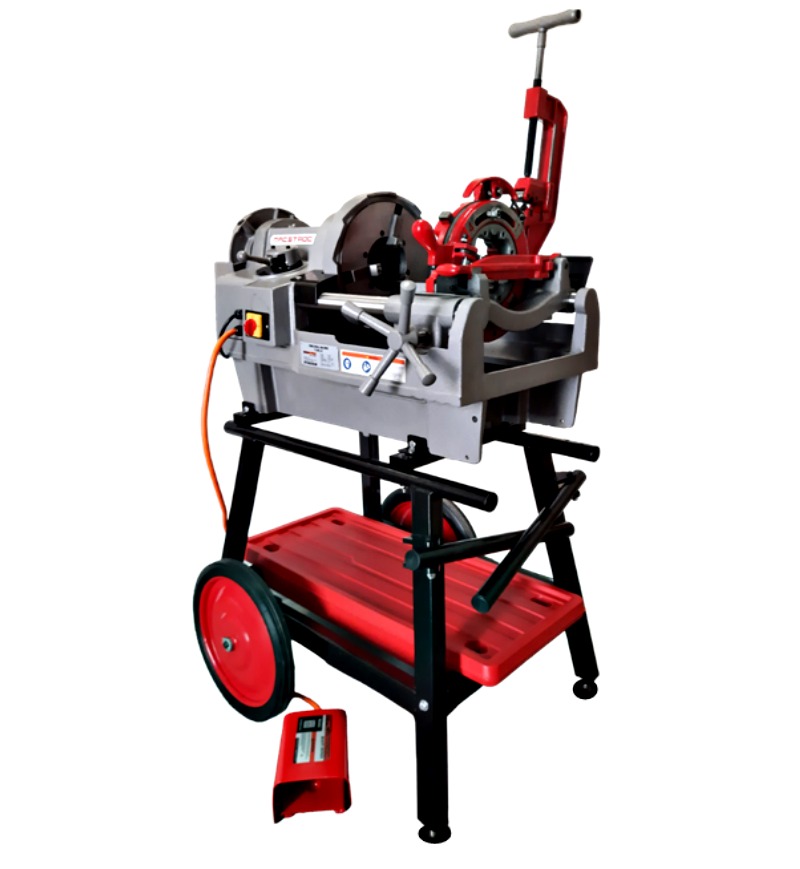

FLARE.4C, PIPE THREADING MACHINE
MODEL: FLARE.4C
CAPACITY
Pipe: 1/4” -4”(6MM-100MM)
Bolt: 12MM-45MM
SPECIFICATIONS:
Motor: 1500W induction, 50 OR 60Hz single phase
Switch: Heavy-duty rotary Forward/off/reverse and inte-
gral foot switch.
Spindle Speed: 36/20/11 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through the die head, with integral oil
Model FLARE.4C Threading Machine. (110 or 220V )
Self-opening die head-SDHN71/SDHB91 (BSPT or NPT )1/4-2”
Self-opening diehead-SDHN74/SDHB94 (BSPT or NPT) 2-1/2-4”
½”-¾” universal HSS dies set. (BSPT or NPT)
1”-2” universal HSS dies set. (BSPT or NPT)
2-1/2”-4” HS Die set. (BSPT or NPT)
Cutter-MHC2032 : Capacity: 1/4”-4”(6mm-100mm) pipe Reamer-MHR1010 : Positive-locking, 5-flute cone, righthand 1/4”-4”(6mm-100mm).
*1 Gallon ‘Power Fluid PF-9835’ cutting oil.
Supplied with MFS642 foot switch, MH1500 wheel stand (Optional)
*May not be supplied to certain countries

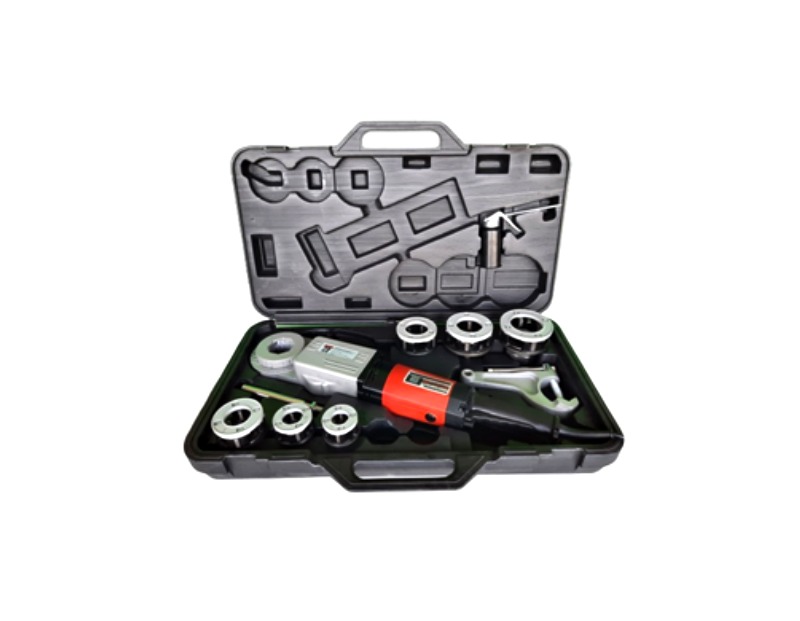

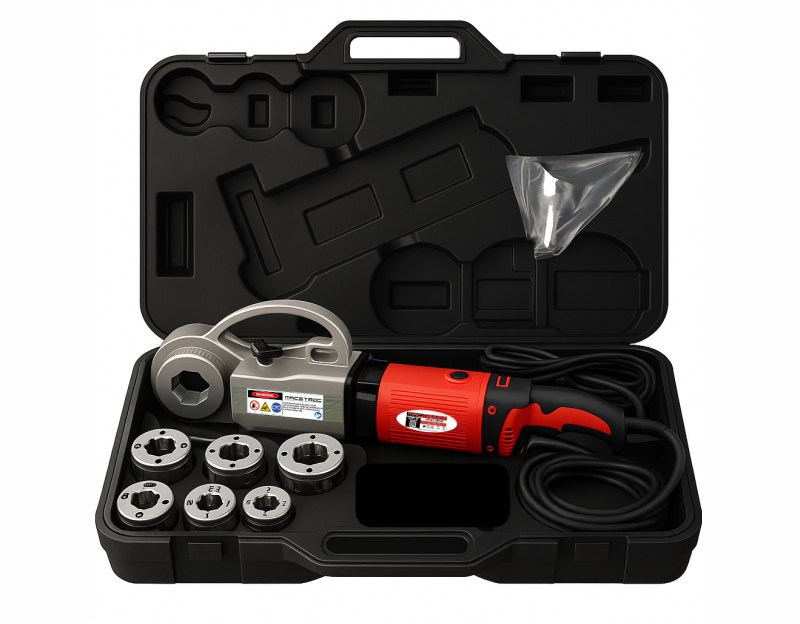

MEPT-3X, PORTABLE THREADING MACHINE
MODEL: MEPT-3X
CAPACITY
Pipe: 1/2” -2”(6MM-100MM)
Motor: MEPT-3X is 1750W input, 1020W output, Universal 110V or 220V, 50/60Hz.
Switch: Heavy-duty paddle-type switch with safety lock off device (automatically locks off when released). Separate mechanical transmission FOR/REV switch. Reverse 3-times faster than threading.
Gear Head: Spur gear reduction/ring gear drive. All shafts, ball and needle bearing mounted. Permanently lubricated gear housing.
Gear Housing: Die cast Aluminum.
Body & Handle: Durable heavy-duty fiberglass reinforced plastic.
Spindle Speed: 28 RPM for threading, 51 RPM reverse (No load)
Die Heads: ½”, ¾”, 1”, 1¼”, 1½”, 2” (Type *11R)
Includes support arm, carrying plastic box
Screw Threads: NPT OR BSPT
Dies Material: Alloy standard, (HSS optional)
Die Head Adapter: Used with ½” through 1¼” die heads.
weight: 8 kg (power drive) , 22Kgs complete set
Length: 76 cm

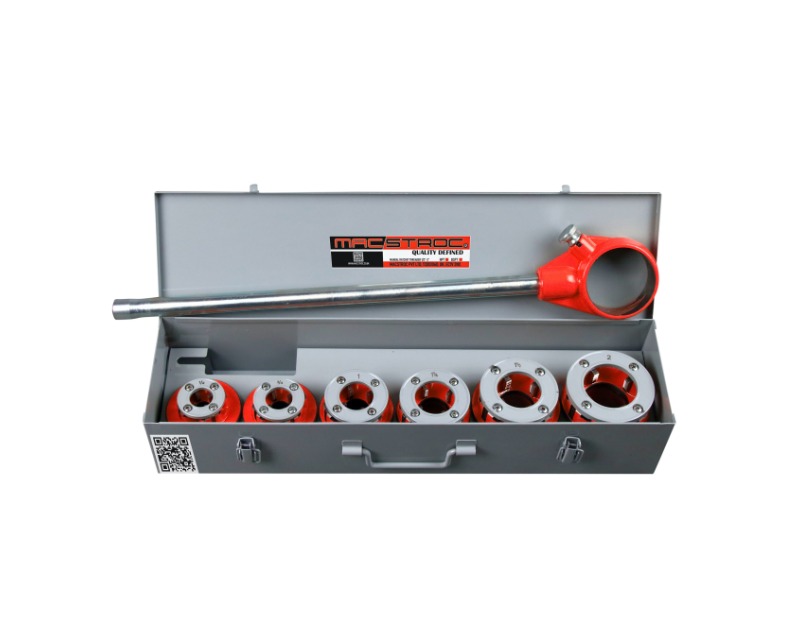

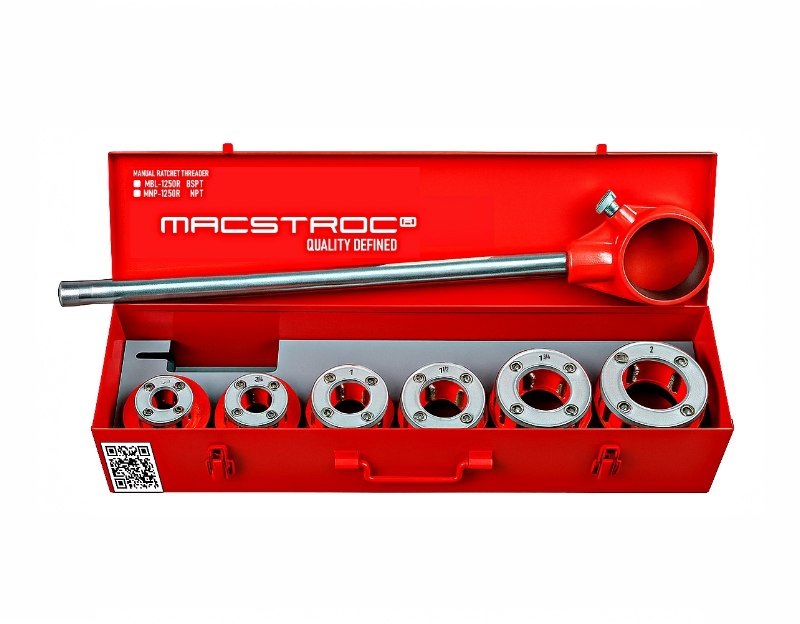

MBL1250R-MNP1250R, MANUAL RATCHET THREADER
| CODE | DESCRIPTION | KGs |
| MBL-1250R | BSPT 1/2-2” COMPLETE SET 1/2, 3/4, 1”, 1-1/4”, 1-1/2” 2” | 25 |
| MNP-1250R | NPT 1/2-2” COMPLETE SET 1/2, 3/4, 1”, 1-1/4”, 1-1/2” 2” | 25 |
Die Heads and Dies: 1/2, 3/4, 1”, 1-1/4”, 1-1/2” 2” (Type *12R)
Handle *12R
carrying Steel box
Screw Threads: NPT OR BSPT
DOWNLOAD FULL CATALOGUE
Discover the comprehensive range of products from Macstroc, encompassing plumbing tools and metal working tools, by accessing our complete catalog. This extensive catalog provides a detailed overview of our diverse product offerings.
