drain cleaning equipment
Our expertise extends across various applications, from sinks to expansive sewer systems. We offer a comprehensive lineup of tools including force pumps, pneumatic pumps, power/hand spinners, and portable drain cleaners, each meticulously designed to address specific drain cleaning requirements. Whether it’s a routine residential task or a demanding municipal project, Macstroc provides the ideal solution for every drain cleaning job, underscoring our commitment to reliability, versatility, and superior performance.
Drain cleaning tools
Macstroc is dedicated to producing a comprehensive array of drain cleaners and sewer machines, adept at addressing a broad spectrum of service calls. Our solutions are designed to accommodate tasks ranging from small residential clogs to heavy-duty municipal lines.

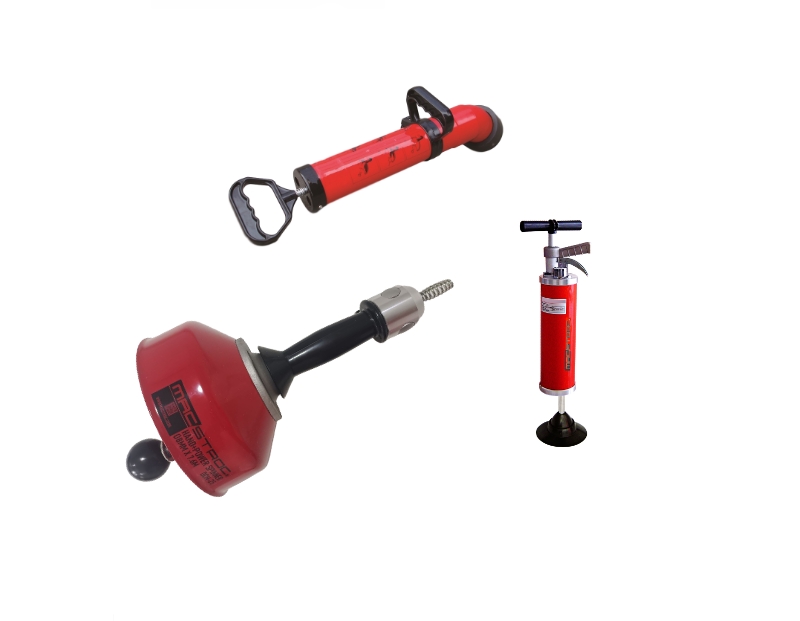

HAND+POWER SPINNER/ FORCE PUMPS
HAND/ POWER SPINNER
|
CODE |
Ø CAPACITY |
CABLE SIZE |
KGS |
|
DCM-25 |
3/4”-3” |
Ø8MM-7.6M |
3.2 |
|
DCM-35 |
3/4”-3” |
Ø8MM-10.7M |
4 |
FORCE PUMP
|
PDCM-10A |
Super pump + adaptor 1 + 2 + 3 |
2.2 |
PNEUMATIC PUMP
|
PDCM-10GQ |
Pneumatic Pump 0.7Mpa + Air release extension pipe + adaptor and connector. |
3.8 |
Our lineup includes hand+POWER spinners, tailored to clean drain lines within the range of 20-75mm. Additionally, we provide force pumps and pneumatic pumps designed specifically for addressing home drain blockages. Our commitment to innovation and functionality ensures that we have the right tools to effectively tackle various drain cleaning challenges.

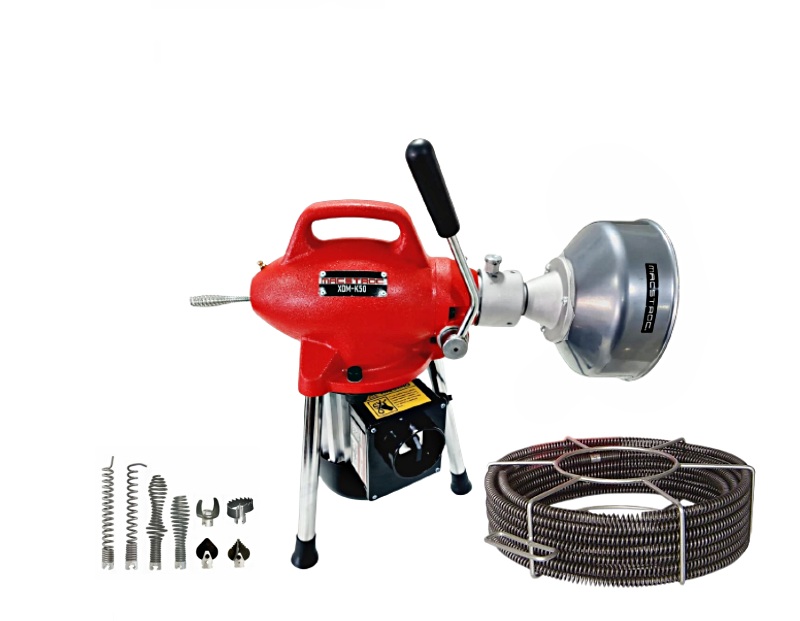

DRAIN CLEANING MACHINE , XDM-K50
MODEL: XDM-K50
XDM-K50 is Lightweight, strong, versatile and Portable design suitable for drain lines of Ø20-100mm (3/4″- 4″) .
Uses different cables of Ø8mm (5/16″) and 16mm(5/8″). Soft shaft MF-2-A Ø8mm (5/16″) best for Ø20-50mm drains.
Uses Sectional Helical flexible shaft Ø16mm (5/8) best for Ø32-100mm(1-1/4″-4″). The sectional cables can be extended as required.
Cable clutch ensures operator control, pull handle down and cable spins speed at 400 RPM, and the soft shaft stops when the handle is released.
Equipped with 390W motor.
Rated Voltage:220V (110V optional) 50Hz,60Hz.
|
XDM-K50 |
Drain cleaner Machine (110Volt or 220Volt – 50/60Hz ) 390W |
|
MRH1-1 |
7-Sections of MR-4-1 (Φ16mm×2.3m sectional cable) 1-Pc of MR-3-1 ( Φ16mm×2.3m flexible cable ) 1-Pc of MF-1-F ( Φ430 cable holder ) |
|
MZHA-1 |
8-Pc set of auger &cutter Ø16mm( MT-1-A MT-2-A MT-3-A MT-5-A MT-6-A MT-7-A MT-8-A MT-9-A ) |
|
MF-3-A |
1-Pc of Ø4 Key |
|
MF-2-A |
1-Pc Ø8mm x 5M soft shaft combination |
|
MF-5-A |
1-Pc Protection gloves |
|
MF-6-A |
1-Pc Accessory barrel |

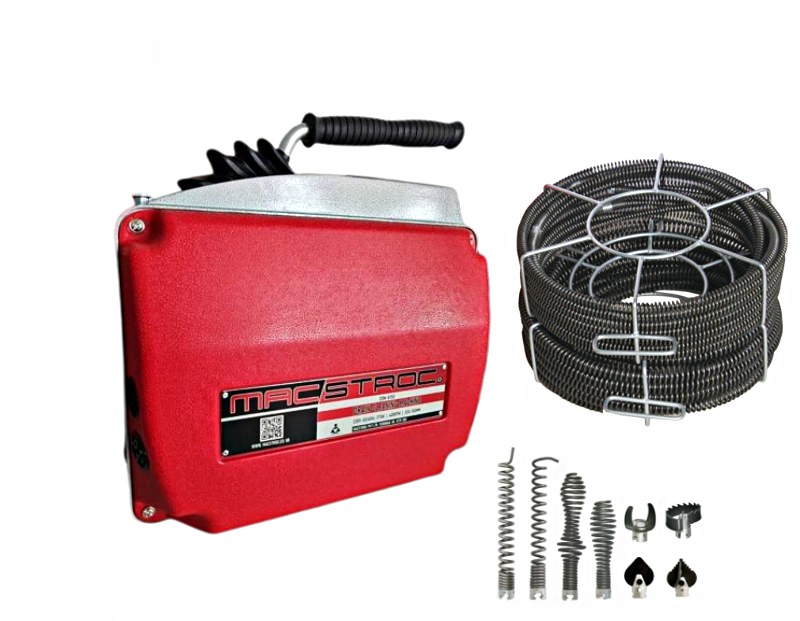

DRAIN CLEANING MACHINE , XDM-K150
MODEL: XDM-1K50
XDM-K150 is multifunctional and strong design suitable for drain lines of Ø20-150mm (3/4″- 6″) .
Uses different cables of Ø8mm (5/16″) ; 16mm(5/8″) and Ø22mm(7/8”) .
Ø8mm cable best for 20-70mm pipes, Ø16mm best for 32-100mm pipes, and Ø22mm use for 50-150mm pipes.
Cable clutch ensures operator control, pull handle down and cable spins speed at 400 RPM, and the soft shaft stops when the handle is released.
Support is provided to adjust the height angle of the machine for different work environment.
Equipped with 570W motor.
Rated Voltage:220V (110V optional) 50Hz,60Hz.
|
XDM-K150 |
Drain cleaner Machine (110Volt or 220Volt – 50/60Hz ) 570W |
|
MRH1-3 |
1 x MR-3-1 (Ø16mm x 2.3M soft Flexible cable ) 5 x MR-4-1 ( Ø16mm x 2.3M sectional cables) 1x MF-1F Ø430 cable holder |
|
MRH2-1 |
3 x MR-4-2 (Ø22mm x 4.6m Soft flexible cable & MF-1F holder |
|
MZHA-3 |
4 – Pcs of auger &cutter Ø16mm( MT-1-A MT-3-A MT-5-A MT-6-A) |
|
MZHB-1 |
4 – Pcs of auger &cutter Ø22mm( MT-1-B MT-4-B MT-6-B MT-7-B) |
|
MF-3-A / B |
1-Pc of MF-3-A Ø4mm Key & MF-3-B Ø5.5mm key |
|
MF-2-B |
1-Pc Ø8mm x 5M soft shaft combination |
|
MF-5-A |
1-Pc Protection gloves |
|
MF-6-A |
1-Pc Accessory barrel |
|
MF-7-C |
Protection tube 1.8M Optional |

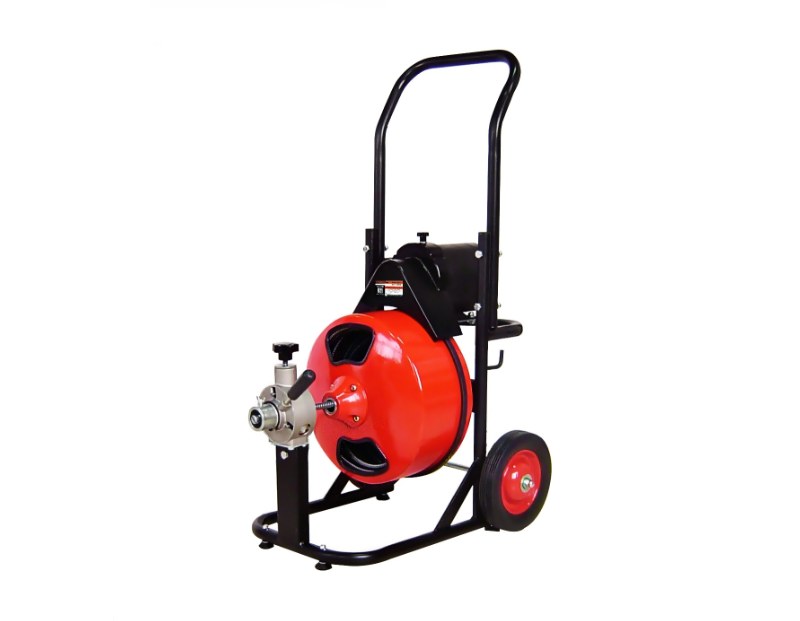

DRAIN CLEANING MACHINE , XDM-K100A
MODEL: XDM-100A
- XDM-K100A is applicable for drain lines of Ø32-100mm (1-1/4″- 4″) .
- Automatic cable feed powers the cable into and out of the drain. The direction of the feed device is reversed and the cable is returned to the drum.
- Built-in with ground fault circuit interrupter and air footswitch for more easy & safe operation.
- Drum spins at 300RPM, Equipped with 390W motor.
- Built with 8”rubber wheels and removable handle. Entirely sealed structure and the shafts are comfortably put in the drum.
- Rated Voltage:220V (110V optional) 50Hz,60Hz
|
XDM-K100A |
Drain cleaner Machine (110Volt or 220Volt – 50/60Hz ) 390W |
|
MR-8-1 |
Ø12.7mm X 15M (1/2” x 50’ ) inner cable |
|
MF-9-J |
Automatic feed device |
|
MZHA-6 |
4 – Pcs of auger &cutter Ø16mm ( MT-7-F MT-9-F MT-2-F MT-8-F) |

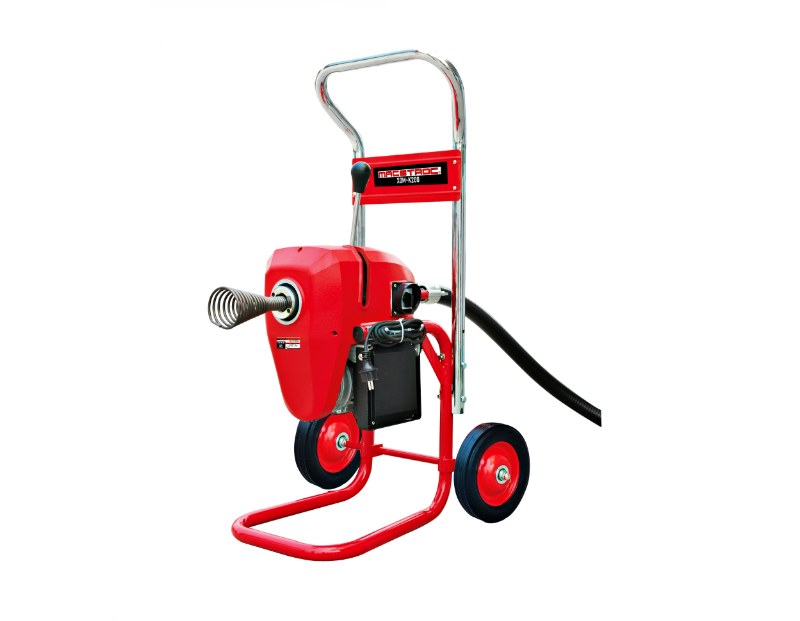

DRAIN CLEANING MACHINE , XDM-K200
- XDM-K200 is applicable for all kind of outdoor drains of Ø50-200mm (2″- 8″) . It is heavy-duty and unit has wheels to move.
- Inbuilt drill hanging rack for keeping augers and cutters.
- Uses Ø30mm cable (1-1/4″) for drains 50-200mm . Cables are extendable.
- Cable clutch ensures operator control, pull handle down and cable spins speed at 700 RPM, and the soft shaft stops when the handle is released.
- Equipped with 1100W motor.
- Rated Voltage:220V (110V optional) 50Hz,60Hz.
| XDM-K200 | Drain cleaner Machine (110Volt or 220Volt – 50/60Hz ) 1100W |
| MRH3-1 |
4 x MR-4-3 ( Ø30mm x 4.6M sectional cables) 1x MF-1G Ø500 cable holder |
| MZHC-1 | 6 Pieces of auger &cutter Ø30mm( MT-1-C MT-4-C MT-5-C MT-7-C MT-8-C MT-9-C ) |
| MF-3-B | 1 X Ø5.5mm key |
| MF-5-A | 1 X Protection gloves |
| MF-7-B | 1 X Protection tube |
| MF-9-A | Accessories shelf |
